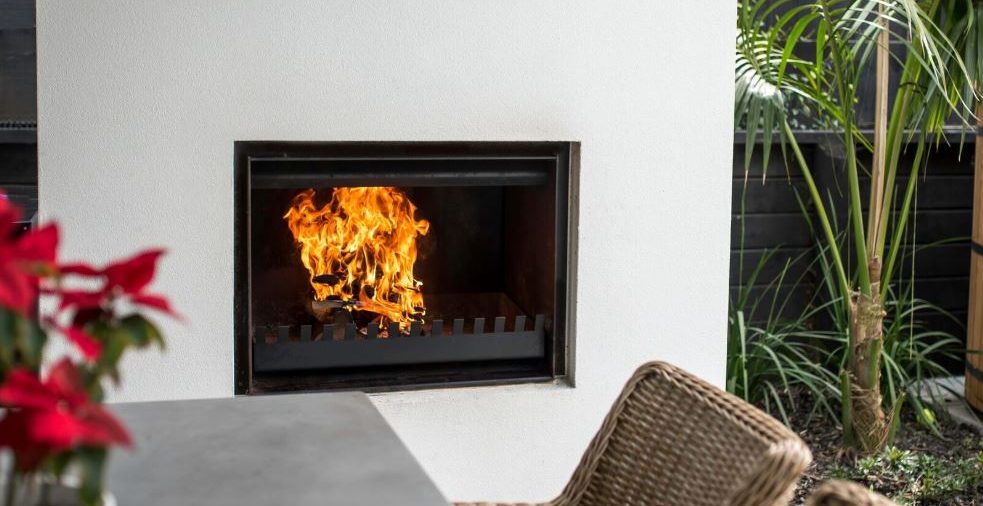

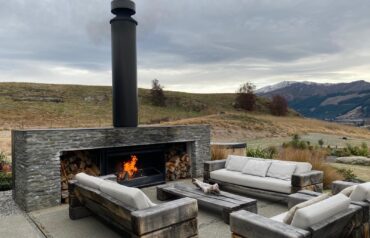

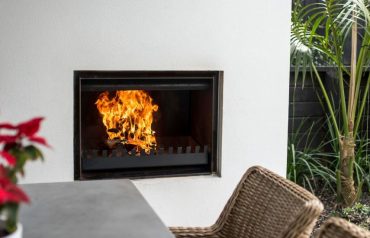

The WD6 indoor or outdoor wood fire provides a traditional look and offers an exclusive heat barrier option for timber cavity installations. Available in three sizes with convenient cooking options.
| 800 | 1200 | 1600 | |
|---|---|---|---|
| Fuel: Wood | ✔ | ✔ | ✔ |
| Replacable ashpan and firebox rear panel: 5mm mild steel | ✔ | ✔ | ✔ |
| Fixing Type: 2 x M8 bolts through base into hearth | ✔ | ✔ | ✔ |
| Flue Termination: Vertical | ✔ | ✔ | ✔ |
| Flue Size: 300-400mm | ✔ | ✔ | ✔ |
| Warranty: 5 years on firebox, 2 years on other components | ✔ | ✔ | ✔ |
| Model Size | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 800 | 1200 | 1770 | 652 | 1052 | 1200 | 635 |
| 1200 | 1600 | 1770 | 652 | 1452 | 1200 | 635 |
| 1600 | 2000 | 1770 | 652 | 1852 | 1200 | 635 |

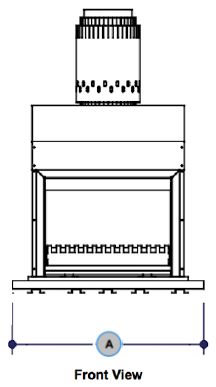

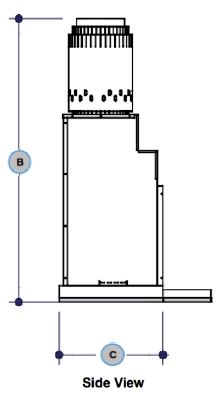

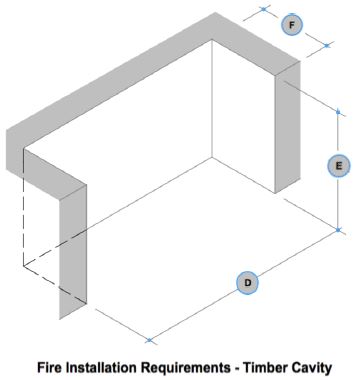

Diagrams shown represent WD6-800 and WD6-1200. WD6-1600 has two flues. Please refer to technical information for more details.
